Flow Control Valves with Analog Interface
G761 and 761 Series Flow Control Valve

- Rated Flow: 3.8, 9.6, 19, 38 and 62 l/min. ∆p 7 MPa
- Rated Pressure: 31 MPa
- Rated Signal: +/-15, 40 and 200 mA single coil
- Port Pattern: ISO 10372 - 04 - 04 - 0 - 92
Learn MoreThis site redirects to moog.com

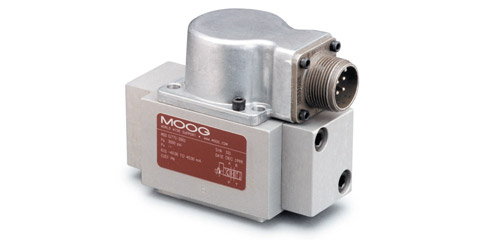

G771, G772, G773, 771, 772, and 773 Series Flow Control Valve (Moog.com)

- Rated Flow: 1.9, 3.8, 9.6, and 19 l/min. ∆p 7 MPa
- Rated Pressure: 21 MPa
- Rated Signal: +/- 8.0, 15, 30, 40 and 200 mA single coil
- Port Pattern: Multiple options available
Learn MoreThis site redirects to moog.com

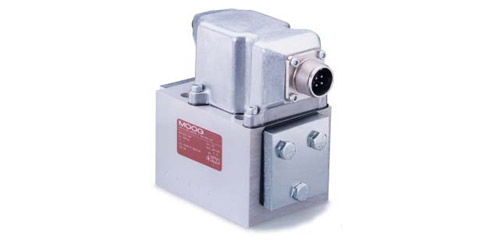

G631 and 631 Series Flow Control Valve

- Rated Flow: 3.8, 9.6, 19, 38, 57, and 76 l/min. ∆p 7 MPa
- Rated Pressure: 31 MPa
- Rated Signal: +/-60 and 100 mA single coil
- Port Pattern: ISO 4401 - 05 - 05 - 0 - 94
Learn MoreThis site redirects to moog.com
72 Series Flow Control Valve

- Rated Flow: 100 l/min to 227 l/min ∆p 7 MPa
- Rated Pressure: 31 MPa
- Rated Signal: +/-8, 15 and 40 mA single coil
- Port Pattern: ISO 10372 - 06 - 05 - 0 - 92
Learn MoreThis site redirects to moog.com
78 Series Flow Control Valve

- Rated Flow: 76, 96, 114 and 151 l/min. ∆p 7 MPa
- Rated Pressure: 21 MPa
- Rated Signal: +/- 8.0, 15, 40 and 200 mA single coil
- Port Pattern: Moog standard
Learn MoreThis site redirects to moog.com
760 Series Flow Control Valve

- Rated Flow: 0.5, 1.9, 3.8, 9.6, 19, 38 and 57 l/min. ∆p 7 MPa
- Rated Pressure: 21 MPa normal | 35 MPa special order
- Rated Signal: +/- 8, 15, 30, 40, 50 and 200 mA single coil
- Port Pattern: ISO 10372 - 04 - 04 - 0 - 92
Learn MoreThis site redirects to moog.com
79-100 and 79-200 Series Flow Control Valve (Moog.com)

- Rated Flow: 114, 151, 246, 380 644, 795 and 100 l/min. ∆p 7 MPa
- Rated Pressure: 21, 31, and 35 MPa
- Rated Signal: +/-30 and 80 mA single coil
- Port Pattern: -079-2xx & 792: Ports: 3.12 X 2.25, 8
Learn MoreThis site redirects to moog.com
Jet Pipe Valves

- Rated Flow: 96, 114, 151 & 227 l/min. ∆p 7 MPa
- Rated Pressure: 21 MPa normal | 35 MPa special order
- Rated Signal: +/- 10, 20, 40, 50 and 100 mA single coil
- Port Pattern: Moog standard
